125cc Engine, with KickStart, Clutch 4 speed


MSRP: $515.15
Price: $400.00
You Save: $115.15 (22 %)
1 in stock
Item Number: TB234
Manufacturer: Zongshen

Zongshen 125cc Engine, with Kick Start, Clutch 4 speed N1234





This brand New engine is assembled and ready to install. This engine bolts in the Honda style frame CT70, CRF50/ XR50, will need clone foot pegs.



There is a lighting coil in this engine


All Trailbuddy engines are Full-Wave output for the best performance.
We have included additional insurance on all motors. The cost is already built into the additional handling fee.



Engine Type: 4-Stroke
Cylinder Arrangement: Single Cylinder, Camshaft pointing upward tilting 10 degrees
Max Power: 10hp
Max Torque: 7 ft-ib
Displacement: 124.8
Bore x Stroke: 54 x 54.5
Starting: Kick start
Clutch Type: Manual wet multi-plate
Transmission Type: Constant mesh, two stage transmission, 4-speed gearshift
Gear Shift Pattern: N-1-2-3-4
Front Sprocket: 16t/420

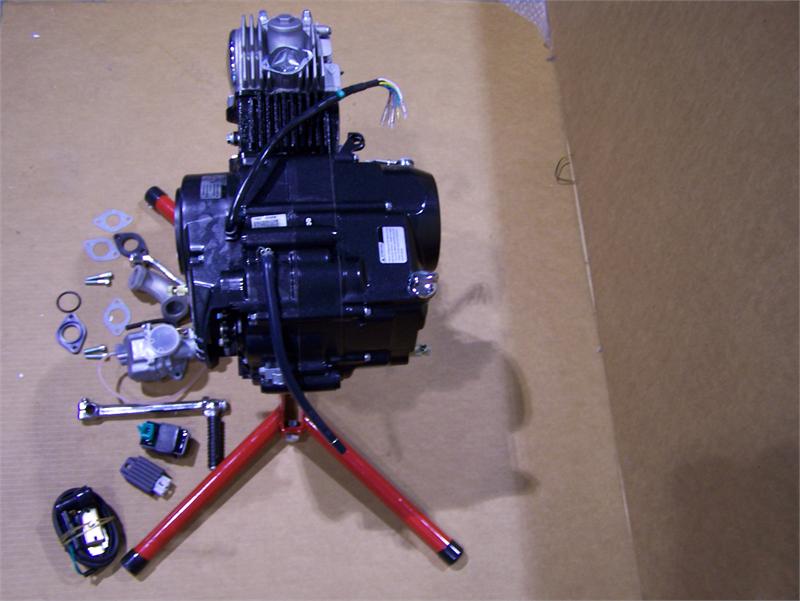

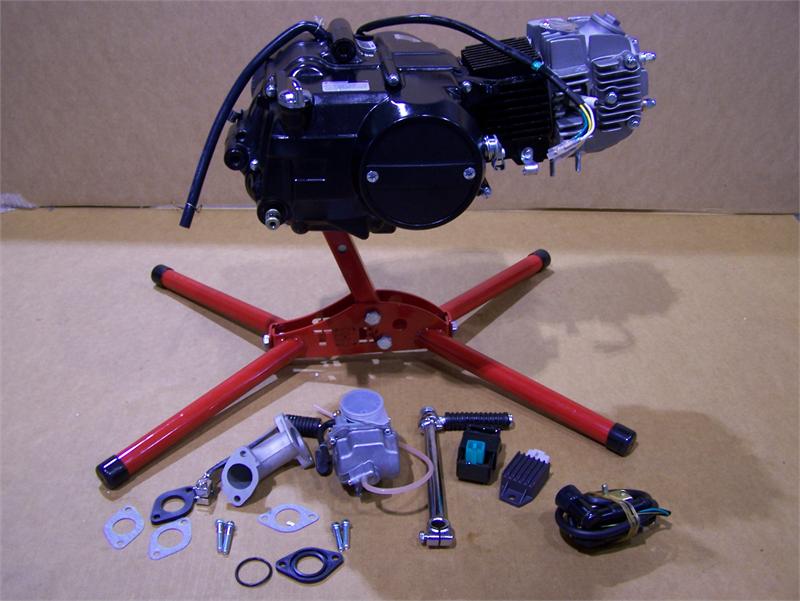

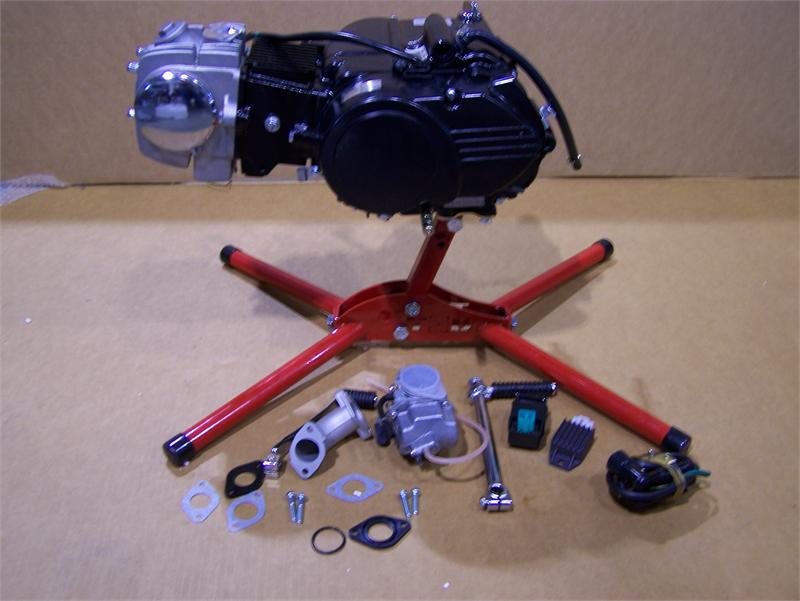

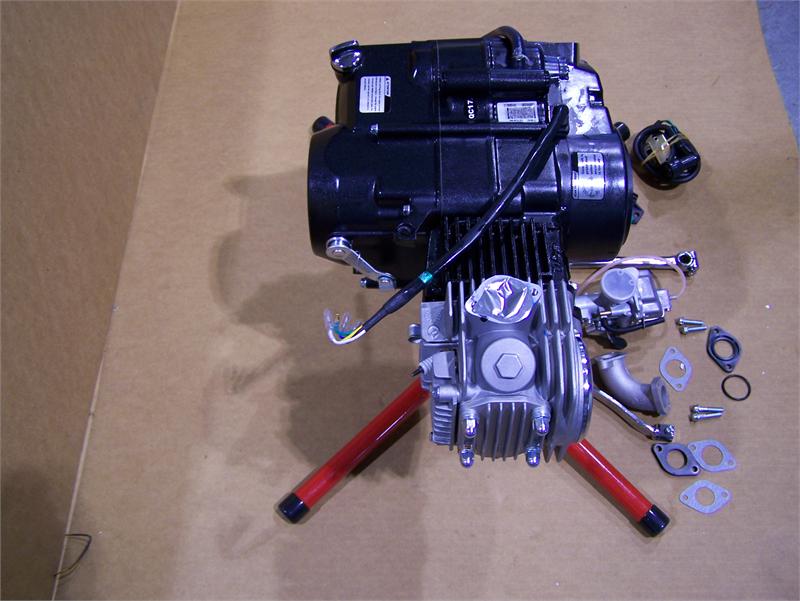

This engine will come with the following parts,

Intake manifold, gasket, bolts, spark plug, gear shift lever, kick start lever,
a 25mm carburetor, rectifier and CDI (rev box) are included.



Clutch lever assembly, air filter and wiring harness are needed to complete.This is a 12v system- your stock bike is 6v- you are going to have to do some modifications.  Please check the Electrical Conversion Kit section for more information.
