125cc Engine, with Electric Start, Clutch 4 speed


MSRP: $525.00
Price: $420.00
You Save: $105.00 (20 %)
Out of stock
Item Number: TB176
Manufacturer: Zongshen

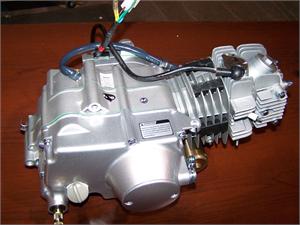

Zongshen 125cc Engine, with Electric Start, Clutch 4 speed N1234





Brand New 12v  Engine is all assembled except for the cover over the sprocket so you can easily install the chain. Will come with a 420 Front sprocket.   This engine bolts in the Honda style frame CT70, CRF50/ XR50, will need clone foot pegs.



There is a lighting coil in this engine and is a 4 Speed, N1234 shifting pattern.

Engine Type: 4-Stroke
Cylinder Arrangement: Single Cylinder, Camshaft pointing upward tilting 10 degrees
Max Power: 5.8/8000
Max Torque: 8.5/6000
Displacement: 123.7
Bore x Stroke: 54 x 54
Starting: Electric and kick start
Clutch Type: Automatic wet multi-plate
Transmission Type: Constant mesh, two stage transmission, 4-speed gearshift
Gear Shift Pattern: N-1-2-3-4
Front Sprocket: 16t/420


All Trailbuddy engines are Full-Wave output for the best performance.


We have included additional insurance on all motors. The cost is already built into the additional handling fee.

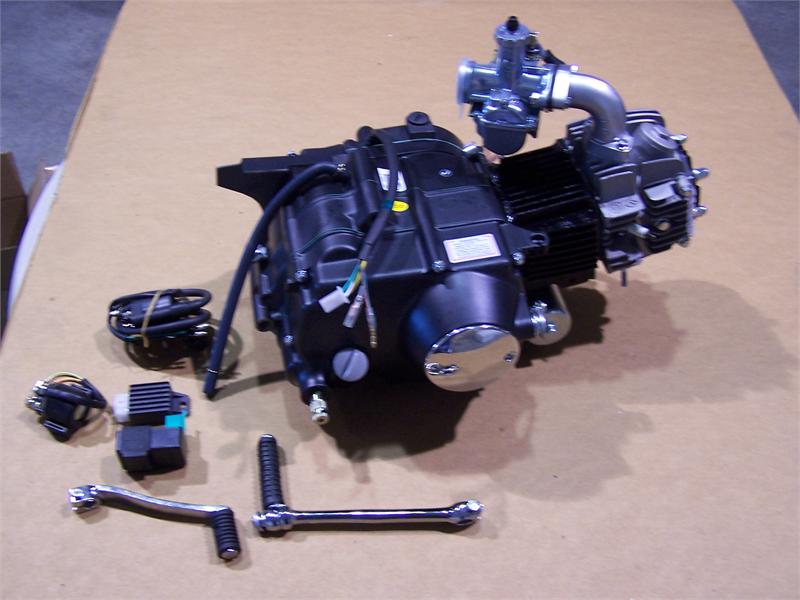

This engine will come with the following parts:

Intake manifold, gasket, bolts, spark plug, gear shift lever, kick start lever, rectifier,
a 25mm carburetor, and CDI (rev box) are included.



Clutch lever assembly, air filter and wiring harness are needed to complete.
