155cc Engine, NO LIGHTS Pit bike Engine

MSRP: $580.00
Price: $400.00
You Save: $180.00 (31 %)
Out of stock
Item Number: TB155zongnolights
Manufacturer: Zongshen

Zongshen 155cc XR50 CRF50 Pit Bike Engine with Oil Cooler



Brand New Engine, Model # 1P60YMJ



Engine is assembled and ready to install. This engine bolts in the Honda style frame CRF50/ XR50, but this is a monster engine, frame modifications may be needed for your application. will not fit the CT70 with out altering the frame.



There is NO lighting coil in this engine; this is a racing pit bike engine.

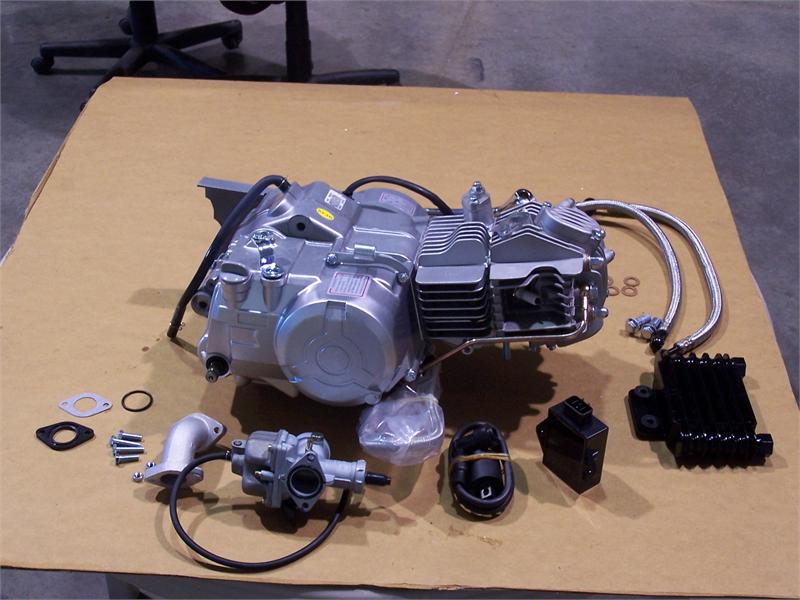

This engine will come with the following parts,

Intake manifold, gasket, bolts, spark plug, gear shift lever, kick start lever, carburetor, CDI (rev box), oil cooler, oil cooler lines and coil are included.



Clutch lever assembly and wiring harness are needed to complete.



Model: 1P60YMJ

155cc oil cooled racing engine



Specification:

Style: Single cylinder, 4 stroke, oil cooled

Displacement: 155.5 ml

Bore x stroke: 60 x 55 mm

Max. Power:10.5 kw/9500 rpm

Rated torque:11.5 N.m/8500  rpm

Start: Kick start, start any gear

Gearbox: N1234

Clutch: Manual, wet, multi-plate

Ignition: CDI

Lucubration: Pressure splash

Net weight: 21 kg

Overall size: 470 x 320 x 270 mm
