19mm CARB-No Returns, refunds, warranty- discontinuing

<< Previous in SCRATCH & DENT Next in SCRATCH & DENT >>

MSRP: $65.00
Price: $35.00
You Save: $30.00 (46 %)
29 in stock
Item Number: TB033D
Manufacturer: Trail Buddy Inc.
Typing Paragraphs in HTML

⚠ California Prop 65 ⚠

No Returns, refunds, warranty- discontinuing

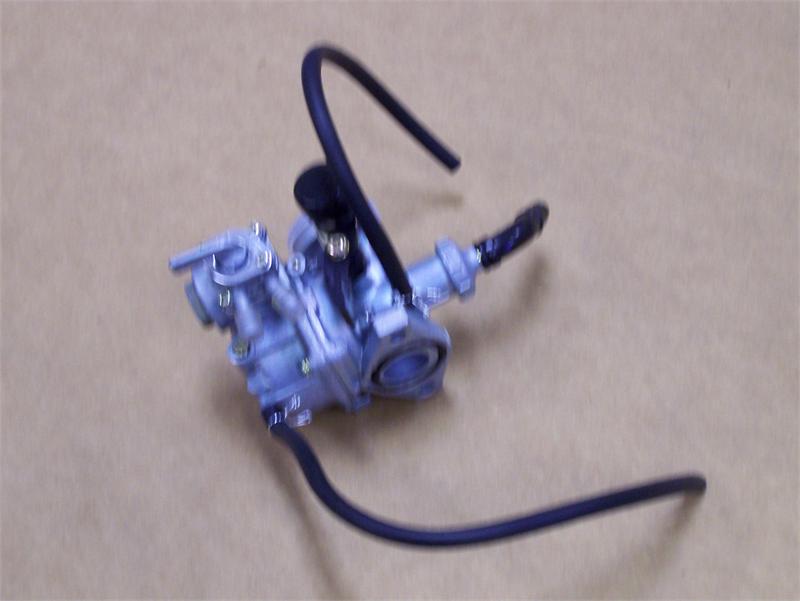

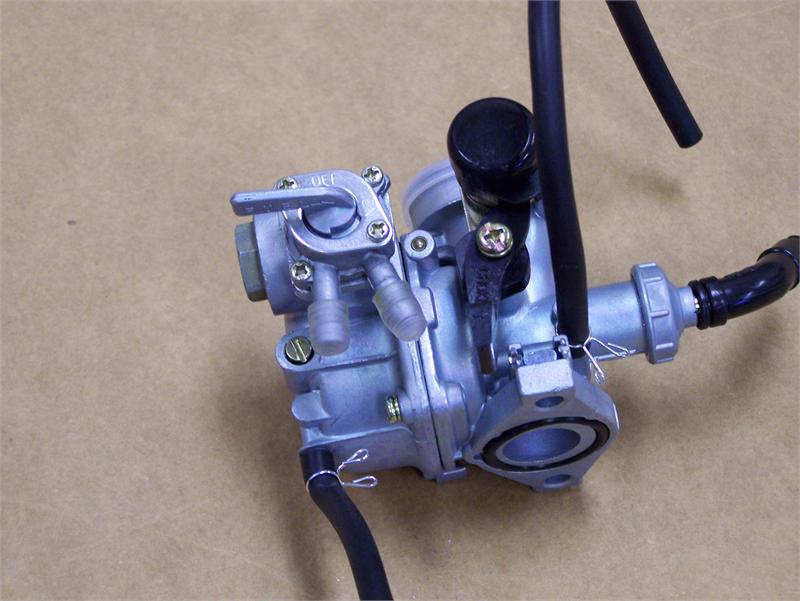

Mounting holes are spaced 48MM(same as stock) and the holes are taped to M6x1.  Carb has two fuel line inlets (On-Off-Res), has a built in filter bowl for water and heavy debris (sand etc) and the main fuel bowl has drain.  Choke and fuel switch is on right side (opposite stock) and has a fuel and idle screw on the left side (same as stock).  Needs 16.55mm cable travel and will need 58mm of cable to go into the carb.


Great replacement carb for a CT70 1978 and earlier. Be sure to measure that you have the stock intake by measuring the bolt holes on the intake.  Will work on any 70cc-110cc engine with the above specifications.


*This is too big to be used as a stock Z50 replacement but if you have a larger engine in a Z50 frame this could work if the specifications are correct.*

Uses air filter with 1.5 inch/39mm opening:
-PU10113154
-PU1011-0744

-PUUP-4152AST

-PUUP-4152

-PURC-231
-TB014
-TB014C







Typing Paragraphs in HTML ⚠ California Prop 65 ⚠ WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. For more information, go to www.P65Warnings.ca.gov.
