CT70 LIFAN 125CC ENGINE 4 Speed Semi Automatic
MSRP: $765.00
Price: $500.00
You Save: $265.00 (35 %)
3 in stock
Item Number: TB012
Not Avaliable for Free-Shipping

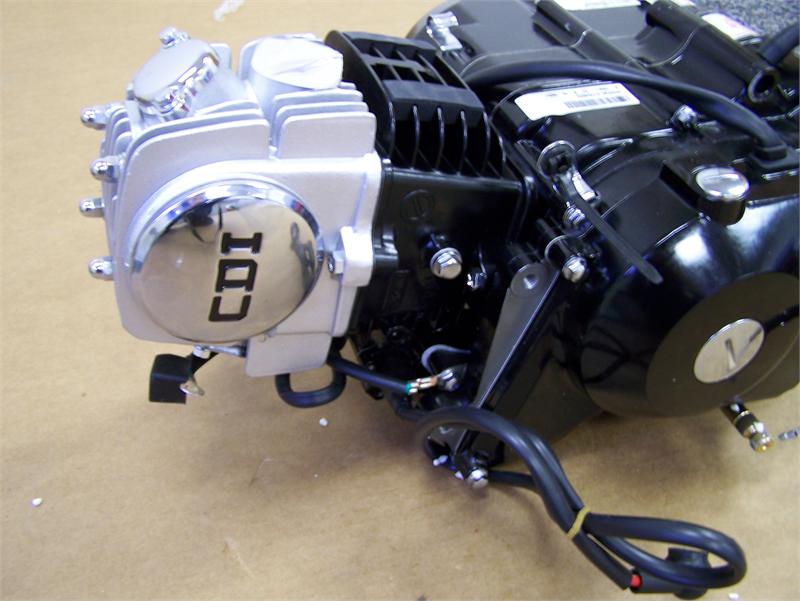

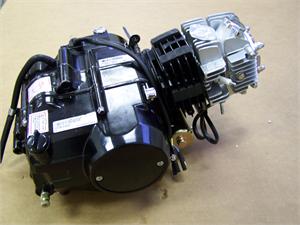

This is a Lifan brand 4 speed Semi-Auto electric start engine with lights!
Engine is assembled and ready to install. This engine will bolt into any Honda CT70 or other models that have similar bolt patterns such as the Z50, TRX70, SL70, CL70, S65, CRF50/ XR50 and many more. However, our expertise and specialty is in the Honda CT70, other models outside of the CT70 (including the Z50) will require custom wiring, fitting and possible fabrication due to the new wiring, carburetor and other mechanical components for the new motor. These are things you will be responsible for, as we have extremely limited experience in swaps outside the CT70. THIS WILL NOT FIT A HONDA ST90 WITHOUT FRAME MODIFICATION. Stock footpegs will not work. You will need our aftermarket footpeg assembly (TB148). There is a lighting coil in this engine. This is a 12v CDI system so you will need to review your wiring needs for your application.
Our engines are specifically made to OEM Honda standard diameter, so there is no special sprocket that is needed for your gearing options.
Trailbuddy engines have an installed 420 front sprocket not a 428- so no need to worry about modifying or changing the rear sprocket you already have installed. This will make it easier for you to gear your bike to either top or low end. You can find the front and rear sprockets under the CT70 section in the subcategory “sprockets”. Our engines are not heavily gusseted by the top engine bolt which allow for a clean and easy mounting experience. You may want to install the motor with new mounting bolts, please see TB128 and TB129B, respectively.
Our engines also have a full wave rectifier which is a more efficient and smoother rectification. A full wave rectifier is double the half wave because it converts both cycles of AC to DC. The ripple factor is less in a full wave rectifier, so the waveform is smooth and easy to filter out.
It is highly recommended that you purchase this fuel switch to work with the carb that comes with our motors: https://mytrailbuddystore.com/fueltankswitch.aspx. The carb has a single fuel inlet while the gas tank will have a dual outlet. Also, please note that the electric start is on the bottom of the motor so you won't have to worry about reconfiguring where to place the carb/intake and air filter.
The motor includes:
25mm Molkt Carb (92 Main Jet installed), intake manifold, gasket, bolts, spark plug, gear shift lever, kick start lever, 45mm black dual stage air filter, CDI, Ignition coil, 12v Full Wave Rectifier/Voltage Regulator.
We have included additional insurance on all motors. The cost is already built into the handling fee.
Engine Type: 4-Stroke
Cylinder Arrangement: Single Cylinder, Camshaft pointing upward tilting 10 degrees
Max Power: 7.7 hp
Max Torque: 6 ft-ib
Displacement: 119.7
Bore x Stroke: 52.4 x 55.5
Starting: Electric and kick start
Clutch Type: Automatic wet single clutch
Transmission Type: Constant mesh, two stage transmission, 4-speed gearshift
Gear Shift Pattern: N-1-2-3-4
Front Sprocket: 15t/420
Wire Connections for the 125cc Lifan:
Blue/White wire: Pulse
Yellow: Lights out
Green/Red: Neutral light
Green: Ground
Black/Red: Kill switch
White: AC out
**Oil is 10w30 or 40 absolutely no more than 800ml from complete drain
|
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
|
This tandem harness is fused to protect your original wiring system and designed to use with your original 1969-1976* CT70 OEM Harness and Ignition only. PLEASE SEE THE FULL DESCRIPTION FOR MORE MODIFICATION/USAGE INFORMATION.
|
M8 x 1.25, 120mm long Engine Bolt Bottom
Qty. 1
|
This bolt is meant to replace the top engine bolt in either a clone motor or stock 70cc motor- as long as you are using an AFTERMARKET air filter and not the black canister filter. This bolt measures M8x1.25, 130mm long.
|
MSRP: $88.00
Price: $73.59
You Save: $14.41 (16 %)
Footpeg Bracket Assembly this is highly recommended for any aftermarket engine with the same mounting bolt pattern as stock CT70 engines. See full web for fitment dimensions.
|
We have created a sub harness for all our engines to match our harness (TB160). This will NOT work from an aftermarket engine to a stock harness.
We do not guarantee that this will work with engines/harnesses not bought through Trailbuddy Inc.
| |
